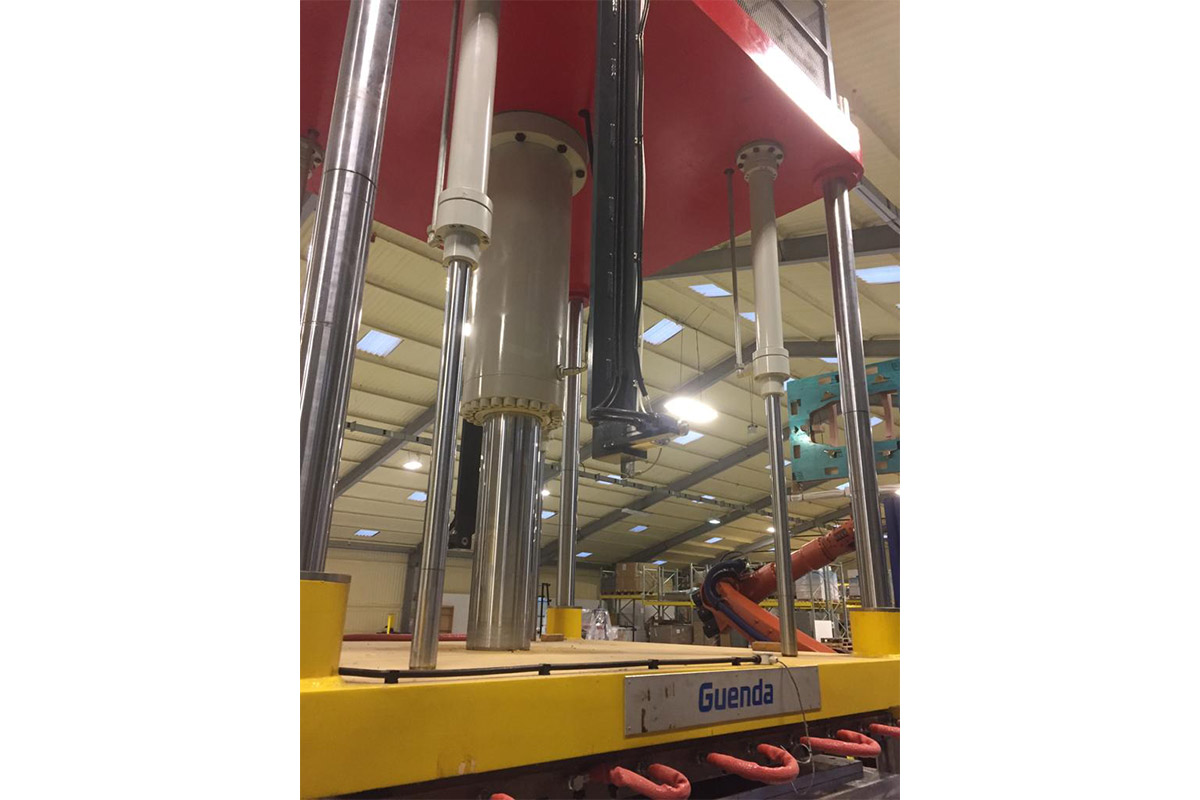

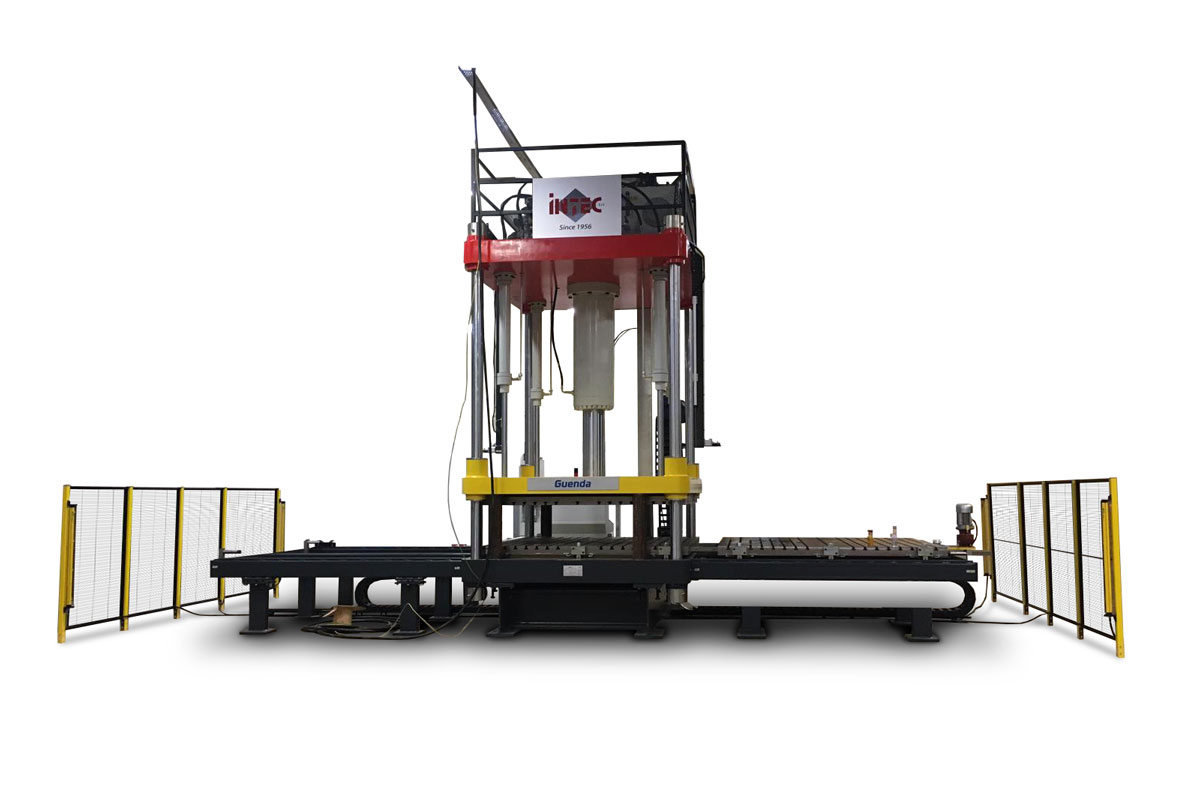

GUENDA CF2
Configuration: -
Finished product: -
Material: -
Automatic compression molding machine for composite materials.
Technical details GUENDA CF2
| Number of stations | n. 1/2/3 |
| Number of extruders | n. 1 |
| Diameter | 150 |
| L/D ratio | 40 |
| Injection Volume | Up to 50000 Cc |
| Theoretical Max Injection Flow Rate | cm3/sec 1000 |
| Electric Motor Power | up to 4000 kW |
| Max Screw Rotation Speed | 150 |
| Max torque at 120 rpm | 500 |
| Standard Mold Size | mm 4000x4000 |
| Max Heating Power | -- |
| Force Closing Press. | up to 35 kN |
| Maximum Opening | up to 2000 mm |
| Blowing Air Into the Molds | Standard |
| Mold heating/cooling | Optional |
| Energy Saving Hydraulic System | Standard (Brushless Optional) |
| Maximum Service Pressure | up to 1000 kg/cm2 |
| Proportional Flow Valves | Standard |
| Proportional Speed Valves | Standard |
| Electric unit with Plc and Video Touch screen | Standard |
| Total Installed Power | kW ? (Brushless kW ?) to be sized |
| Average Consumption at Steady State | kW ? (Brushless kW ?) to be sized |
